Die Cutter

Performance and characteristics

SGMQ-320 Multi FunctionaITwo-heads Die Cutter is the newest innovation and design. lt's easy operated and stable performance. Material feeding is controlled by the servo motor and operated by touch screen. Automatic paper feeding, Laminating, hot stamping, die cutter, automatic sheet or rewinding can be completed in one pass. And all are controlled by PLC, and 2nd pass sensor for tracking mark, The machine occupies small area, lower noise, high speed, precise die cutter etc. Unwinder and rewinder air shaft are controlled by separate motor.This machine is a best and efficient machine for the electronics industry and IT industry. It used for electronic, electrical equipment, mobile, special rubber pad,silicone paste, grinding paste, conductive tape, double face tape, LED, and plastic film.

Technical Specification

Model	SGMQ-320
Max. Web width	320mm
Max die cutter length	320mm x 290mm
Die cutter speed	1800-12000pcs/h
Overalldimensions （L×W× H )	3120X1270X1890mm
Die cuter mold height	20mm
Max. die cutter pressure	5 Tons
Power	AC 380V5.5 kw
Machine weight	3800kgs

Notes: With the viriation of the length to be printed. machine speed should be changed

*its overall dimension and manufacturing Process are subject to change without further notice

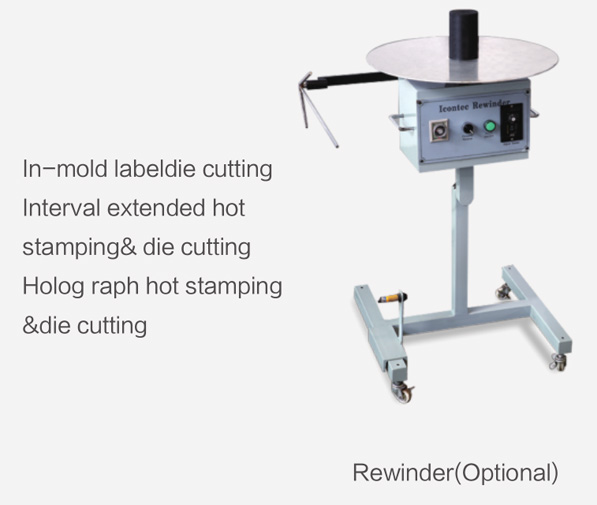

Optional
