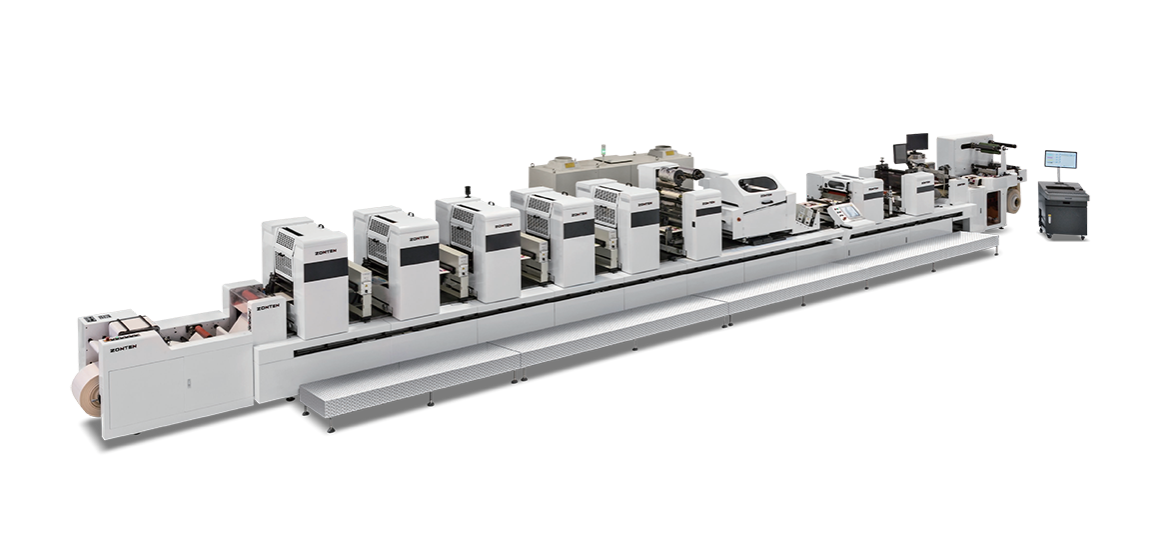

• ZTJ-330/520 Intermittent Offset Label Presses
ZTJ-330/520 Intermittent Offset Label Presses
HomeProducts > Presses
Product Introduction
Print this page Send email Product Inquiry


1、Servo driven

Independent servo driven system in each unit to guarantee stable register at high printing speed.


2、Printing unit

Use the most advanced inking system which has 23 inking rolls, four large diameter form rolls included and alcohol damping system to guarantee printing quarlrty.


3、Pre-register system

Based upon the printing length, log data into the sliding control station,each unit will automatically be adjusted to its ready position.


4、Register system:

Each printing unit can remote adjust register which includes lineal, lateral and skewing without stopping the press to save time and educer the waste of substrate.


5、Vacuum backflow control unwind

Vacuum backflow cylinder should be able to prevent scratches on the back of P/S label during intermittent motion.


6、Joystickless

Fully automatic operation system including pressure adjustment, inking roll washup.roller impression, etc.


7、Easy to operate

Equipped with sliding touch screen control station which can be moving around to increase the efficiency of operator.


8、Printing size

Paterted technology to minimize printing size to achieve larger scale of variable size printing.


9、Control system

Apply electronic component from famous international brand to guarantee long term reliable operation.


10、Lubrication system

Centralized automatic lubrication.


11、This equipment adopt lastest German technology of offset press with reasonable structure, low noise and energy consumption.



Technical Specification


Model

ZTJ-330

ZTJ-520

Max. web width

330mm

520mm

Max. printing width

320mm

510mm

Printing repeat

100~350mm

150~380mm

Thickness of substrate

0.1~0.3mm

0.1~0.35mm

Machine speed

50-180rpm(50M/min)

50~160rpm

Max. unwind diameter

700mm

1000mm

Max. rewind diameter

700mm

1000mm

Pneumatic requirement

7kg/cm²

10kg/cm²

Total capacrty

30kw/6 colors(Not including UV)

60kw/6 colors(Not including UV)

UV capacity

4.8kw/color

7kw/color

Power

3 phases 380V

3 phases 380V

Overall dimension(LxWx H)

9500 x1700x1600mm

11880x2110x1600mm

Machine weight

about 13 ton/6 colors

about 15 ton/6 colors

Notes: With the viriation of the length to be printed, machine speed should be changed.

*lts overall dimension and manufacturing Process are subject to change without further notice.

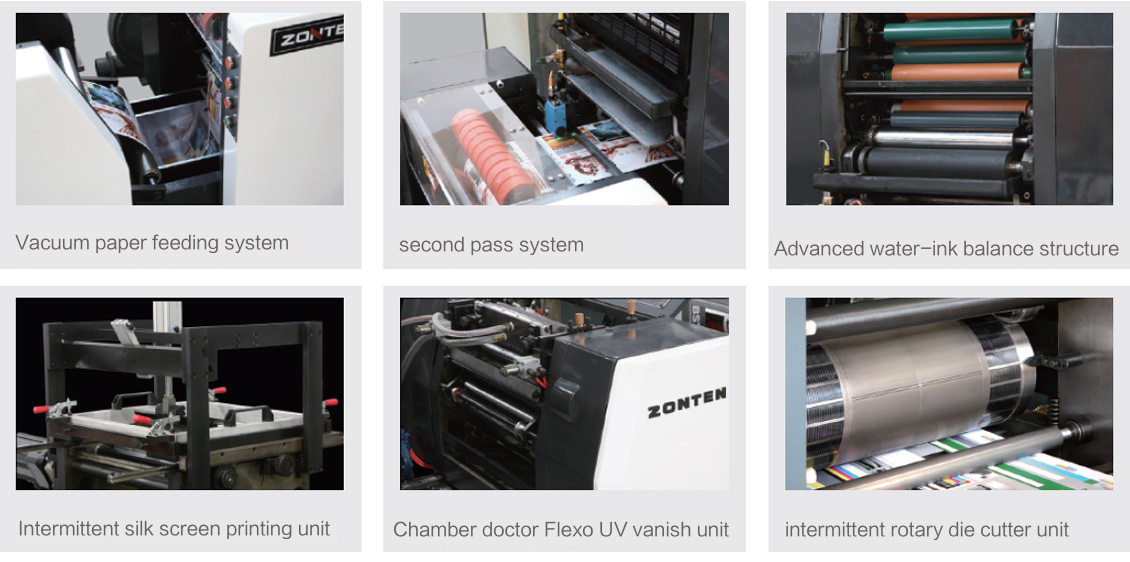

Optionals



Automatic ink roller washup system

UV flexo printing station: Equipped with anilox roll to do the UV coating or white color printing on transparent material.

Remote inking system

Letterpress printing unit

Cold foil stamping device

Rotary diecutting device: Use flexible die and magnetic cylinder to do any shape's cutting.

Silk screen printing unit

Laminating device: A intermittent laminator can be added before rotary diecutting during high speed intermittent printing.

CCD Camera

Web guide system.

Digital printing unit:It is a colorful non-contact variable information printing system which can combine with traditional printing technology to perfect level.
