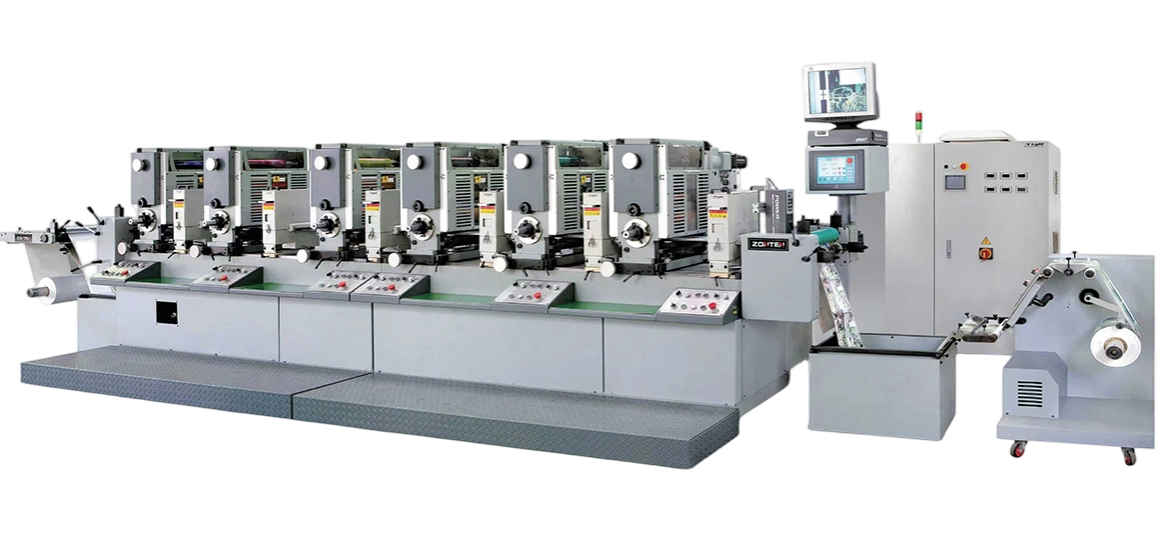

• SUPER-320 Intermittent Letter Press High-speed Label Presses
SUPER-320 Intermittent Letter Press High-speed Label Presses
HomeProducts > Presses
Product Introduction
Print this page Send email Product Inquiry


Performance and characteristics



Adopt paper reciprocating mode. One printing roller could do the job regardless the repeat size.

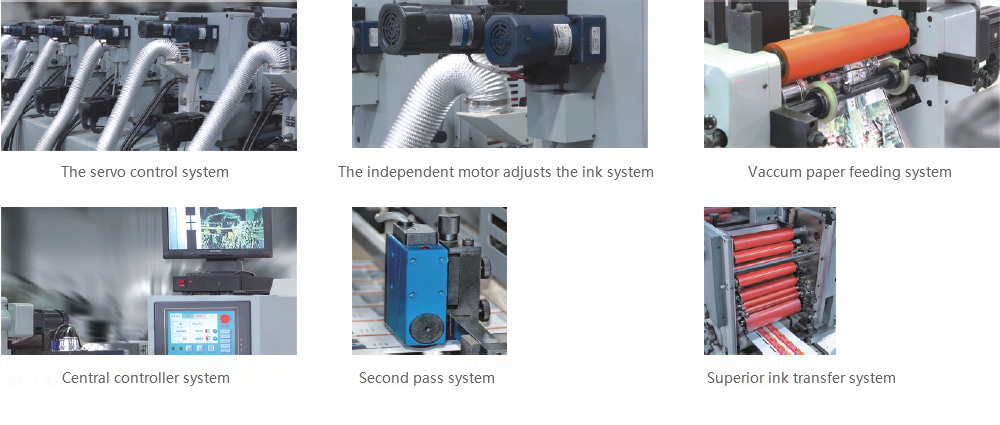

Adopt servo control system to control every roll in printing system, which make the optimized perfor-mance of machine .

Optimization of ink rollers could prevent bar marking and ghosting to improve the printing quality.

The supply of ink will change pro-portionally with the speed of the machine to make printing result better.

Malfunction of the machine would be shown on the screen automatically,which will shorten the repair time.

Paper unwinding, printing, UV vanish, rotary diecutting, waste removal and rewinding can be completed in one pass.

This equipment is suitable for printing middle & upper class labels in large .middle and small batch of production.




Optionals






Technical Specification



Model

SUPER-320

Max. Web width

310mm

Max. printing width

290mm

Printing repeat

50~260mm

Color

2~8 color

Thickness of substrate

0.1~0.3mm

Machine speed

30-250r/min

Max. unwind diameter

700mm

Max. Rewind diameter

700mm

Total capacity

17.3KW Not Including UV

Power

380V/AC.Three-phase 50/60H 50A17.3KVA

Overall dimension(LxWxH)

6800x1600x1400mm

Machine weight

6800kg/6 color

Notes: With the viriation of the length to be printed, machine speed should be changed.

*lts overall dimension and manufacturing Process are subject to change without further notice.

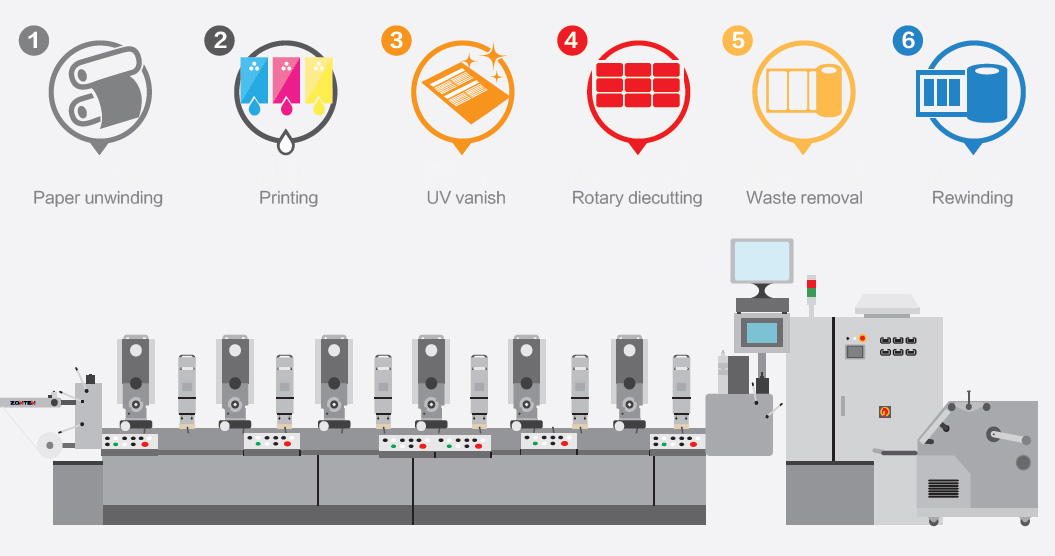

One Time To Complete All The Processes
