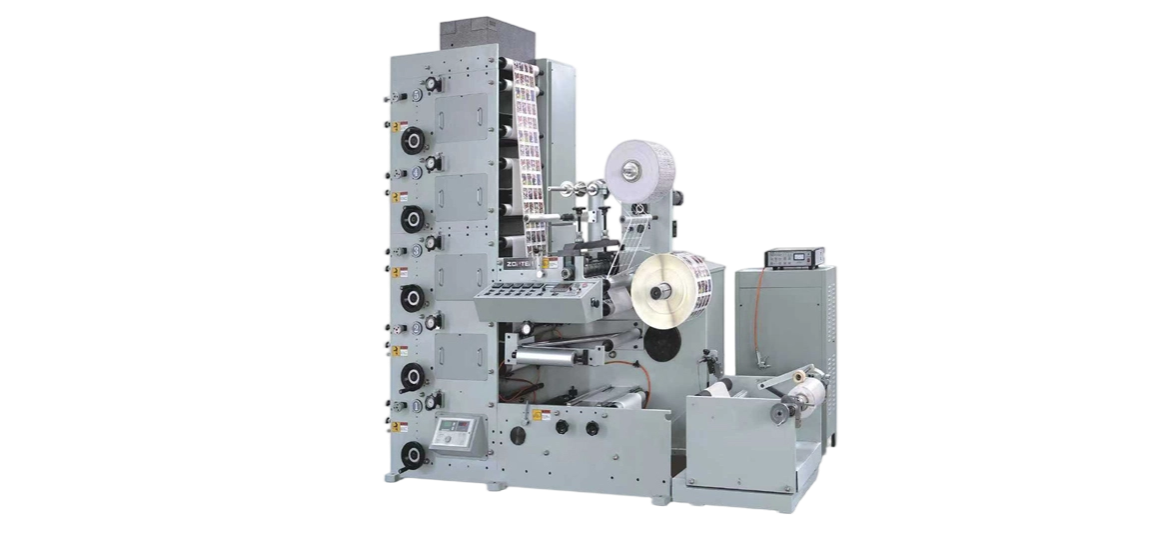

• RY-330/450 Stacked Flexographic Presses
RY-330/450 Stacked Flexographic Presses
HomeProducts > Presses
Product Introduction
Print this page Send email Product Inquiry


Performance and characteristics



The main motor adopts imported inverter to govern a stepples speed adjustment.

Feeding and rewinding are controlled through magnetic particle brake and clutch (Japanese Mitsubishi auto tension controller).

Un winder system is controlled by edge guide sensor.

Adopt ceramic anliox roller which offers durabilitlr, wear resistance and corrosionresistance. also is more efficient on production by reducing the times of changing rollers.

The printing units are all equipped with a group of infrared dryers respectively .

Each IR dryer device of printing unit is interchangeable to UV dryer.

Un winder and re winder adopt air core holder.

The printing unit can register in 360 degrees. Each printing unit can be independently geared and loosen to have rest of units continue to printing.

The roll feeding, printing, UV vanish, auto infrared drying. laminating and rewinding can be processed in one pass. It has characterized by wide application. fast printing speed and high economic efficiency Ink will not contaminate environment. So it is an idea printing machine for the business form. Tag and high end pressure sensitive label.

The inking roller will be automatically off impression when press stop and rotate at lower speed in order to keep the ink from being drying.




Technical Specification



Model

RY-330

RY-450

Max. Web width

320mm

450mm

Max. printing width

310mm

440mm

Printing repeat

180mm-380mm/min

180mm-380mm/min

Color

2~6

2~6

Thickness of substrate

0.1~0.3mm

0.1~0.3mm

Machine speed

10m-80m/min

10m-80m/min

Max. unwind diameter

600mm

600mm

Max. Rewind diameter

550mm

550mm

Main motor capacity

2.2kw

2.2kw

Main power

380V/AC 3 phase 50Hz

380V/AC 3 phase 50Hz

Overall dimension(L x Wx H)

3000x1500x3000mm

3000x1700x 3000mm

Machine weight

2000kg

2300kg

*lts overall dimension and manufacturing Process are subject to change without further notice.
