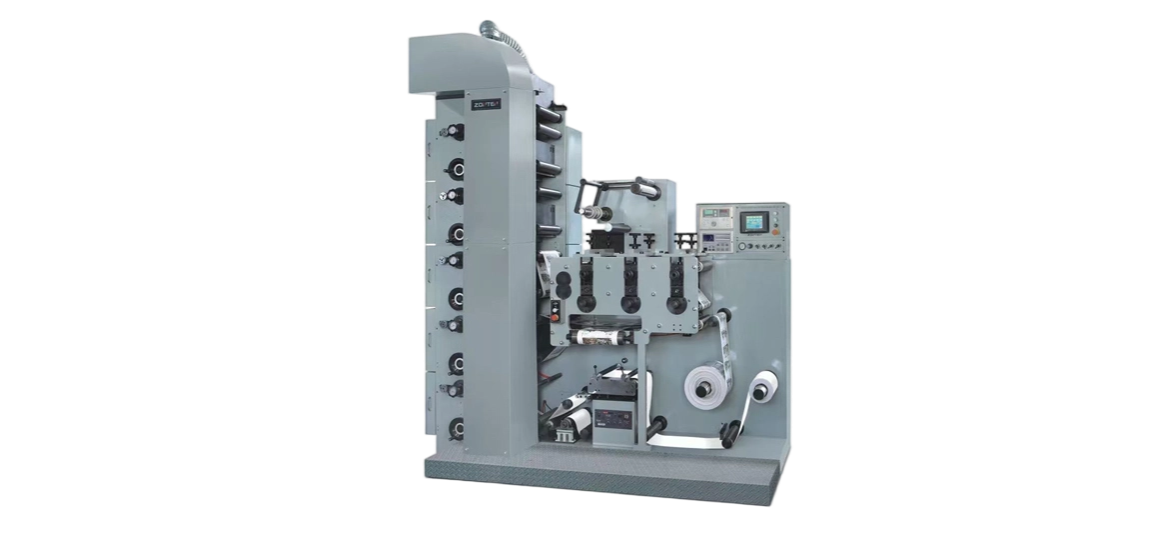

• LRY-330/450 Stacked Flexographic Presses
LRY-330/450 Stacked Flexographic Presses
HomeProducts > Presses
Product Introduction
Print this page Send email Product Inquiry


Performance and characteristics



The main motor adopts imported inverter to govern a stepples speed adjustment.

The printing units are all equipped with a group of infrared dryers respectively .

Each IR dryer device of printing unit is interchangeable to UV dryer.

Feeding and rewinding are controlled through magnetic particle brake and clutch (Japanese Mitsubishi auto tension controller).

Un winder and rewinder adopt air core holder.

Three unit rotary cut with stand-roller make multi-cut can be processed

Adopt ceramic anliox roller which offers durability, wear resistance and corrosion resistance, also is more efficient on produ-ction by reducing the times of changing rollers.

The printing unit can register in 360 degrees. Each printing unit can be independently geared and loosen to have rest of units continue to printing.

The inking roller will be automatically off impression when press stop and rotate at lower speed in order to keep the ink from being drying.

Paper unwind, printing, UV vanish laminating, rotary diecutting, waste removal and rewinding can be processed in one pass. It has characterized by wide application, fast printing speed and high economic efficiency ink will not contaminate environment. So it is an idea printing machine for the business form, Tag and high end pressure sensitive label.



Optionals



1、Single stacker

2、UV curing unit

3、Machine color

4、Cold foil




Technical Specification



Model

LRY-330

LRY-450

Max. Web width

330mm

450mm

Max. printing width

320mm

440mm

Printing repeat

180mm-380mm/min

180mm-380mm/min

Color

2~6

2~6

Thickness of substrate

0.1~0.3mm

0.1~0.3mm

Machine speed

10m-80m/min

10m-80m/min

Max. unwind diameter

650mm

650mm

Max. Rewind diameter

650mm

650mm

Rotarlr-cutting stations

3

3

Main motor capacity

2.2kw

2.2kw

Main power

380V/AC 3 phase 50Hz

380V/AC 3 phase 50Hz

Overall dimension(LxWxH)

2420x1020x2740mm

2420x1020x 2740mm

Machine weight

2500kg /5 corlors

3000kg /5 corlors

Notes: With the viriation of the length to be printed, machine speed should be changed.

*lts overall dimension and manufacturing Process are subject to change without further notice.
